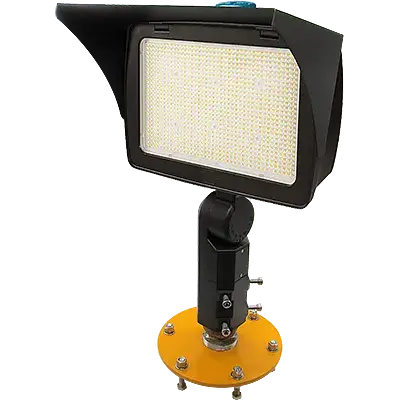

Heliport High Power LED Floodlight (HL-HPFLED)

Applications

Our high power LED floodlight is specially designed for helipads, providing uniform surface lighting for landing and loading activities. The floodlight includes a 2″ anodized aluminum breakable coupling (75-59E) and may be mounted on a base plate, floor flange or stake, sold separately.

Features

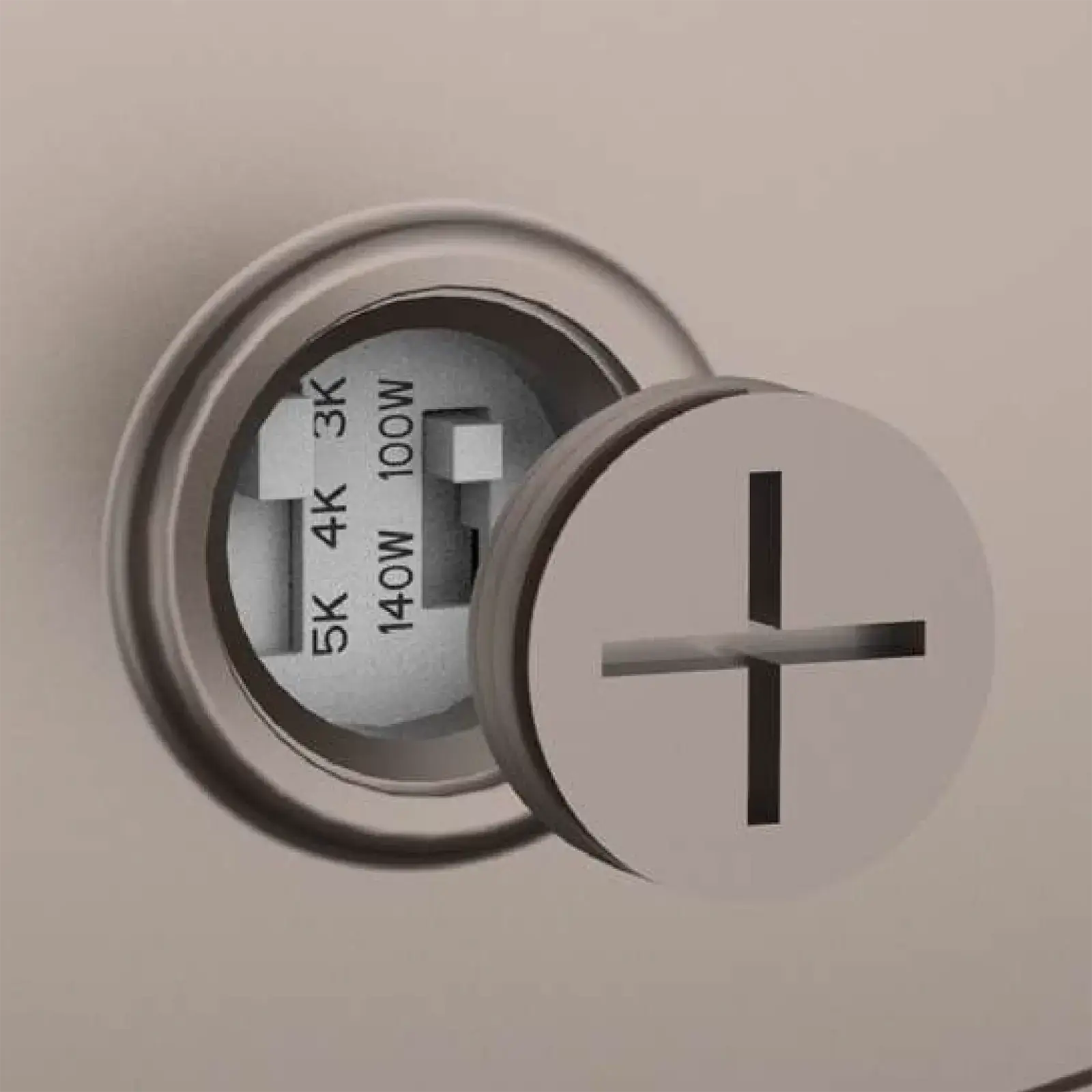

• Field adjustable power (140/100W) & color (3000/4000/5000K)
• Die cast aluminum housing with glare shield and coupling
• Heavy-duty slipfitter and trunnion mount options included
• 3 lenses supplied: NEMA 7H × 6V installed, 6H × 6V & 5H × 5V

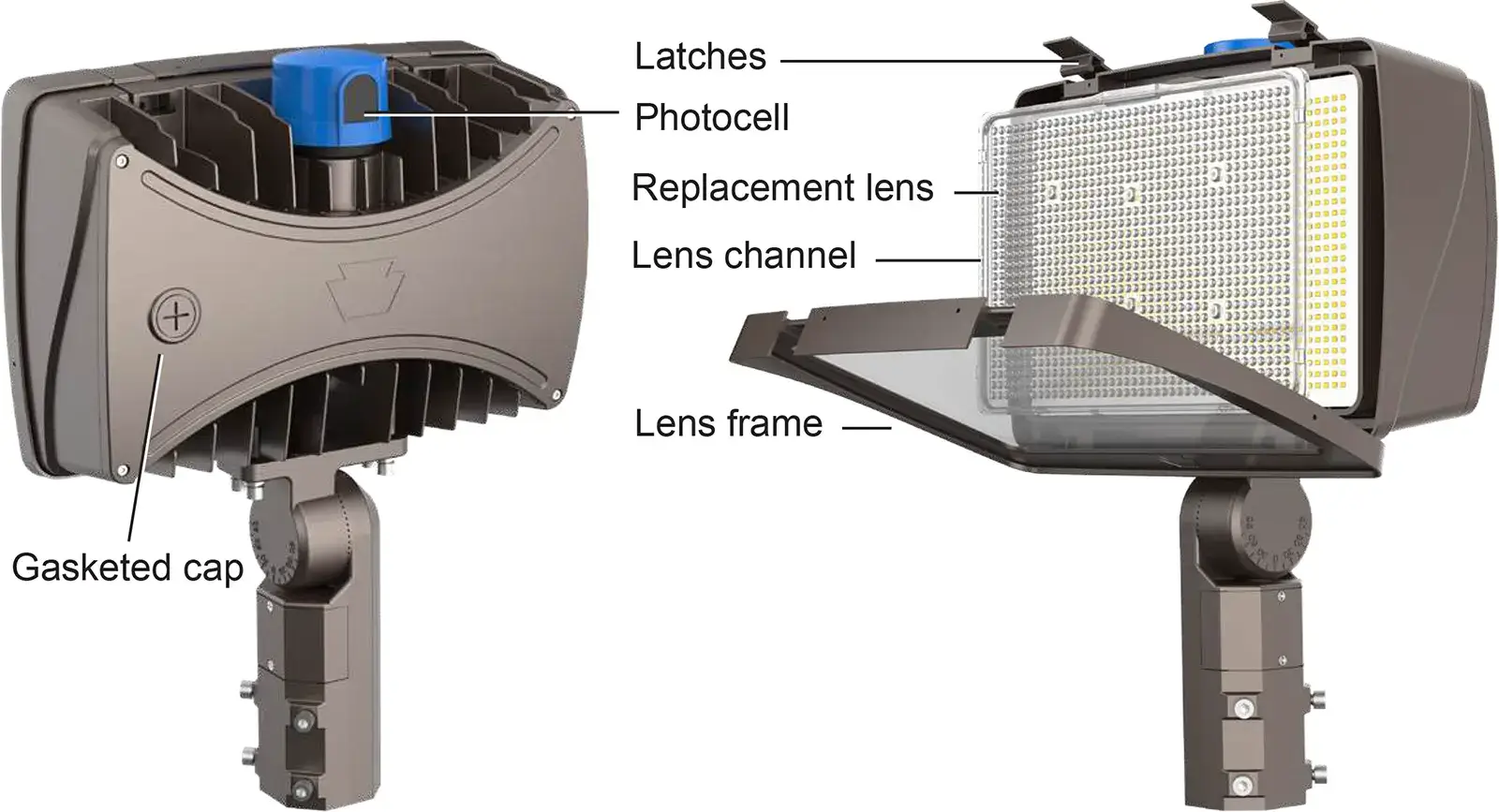

• Optic swap capability for quick, tool-free lens change
• Field adjustable tilt angle maximizes helipad illumination
• UL Certified for wet locations; IP65 rated
• Meets FCC Part 15, Part B, Class A standards for conducted and radiated emissions

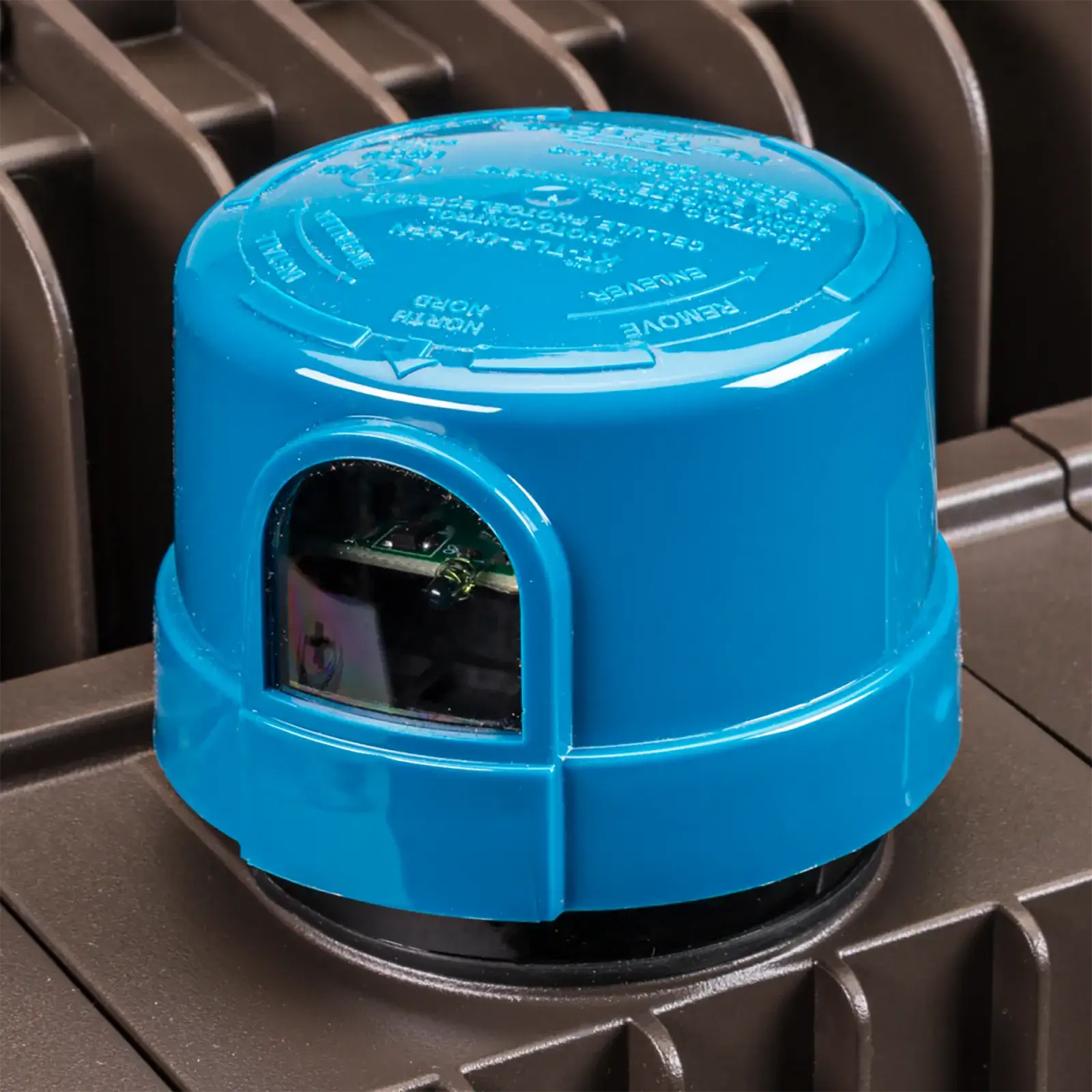

• 3-pin twist lock photocell and shorting cap included with NEMA/ANSI C136.10 3-pin twist lock receptacle
• LED chip lifetime: L70 >100,000 hrs @ 77°F (25°C) ambient fixture temperature
• 0-10V dimming driver with 12V AUX power tap and 6kV surge protection
• Ambient operating temperature: -40°F to 122°F (-40°C to 50°C)
• Power factor: >.95
• THD: <20%
