WCH Series Wind Cone AC and Solar Powered L-807 (Rigid)

This product is available in our webstore – Shop Now

Made in the USA flag

L-807 & L-807(L) Wind Cone

Compliance

FAA: L-807 AC 150/5345-27 (Current Edition)
FAA Engineering Brief 67
ETL Certified
ICAO: Annex 14, Vol. 1, para. 5.1.1 (Size 2 only)

Applications

Provides visual indication of wind direction and velocity at a location on an airfield. FAA Size 2 wind cones are used at the central location on the airfield. FAA Size 1 wind cones are used on smaller airfields and heliports.

Key Specifications

• Available externally lighted, internally lighted, or unlighted.
• LED or halogen lamps.
• All LED models feature:
– 50,000 to 100,000 hour lamp life, virtually maintenance free. 4 year warranty on lamps.
– Multiple lamp circuits, for improved reliability.
– 80-90% less power consumption than halogen lamps.
– A long-life LED obstruction light.
– Integral power-adapter on series-circuit models.
• An incandescent L-810 obstruction light is included on halogen lighted models.
• Size 1 (18″ x 8′ long) or Size 2 (36″ x 12′ long) wind socks.
• The pole is center-hinged, with 4″ diameter steel on the bottom, and 3″ diameter steel on the top.
• A center-mounted braked winch allows 1-person maintenance.
• The four anchor bolts are a one-piece welded assembly, ready to drop in the ground.
• The aluminum basket is welded, one piece, with pre-installed bearings.
• Raincaps protect the bearings from weather.
• The nylon sock is treated for rot, mildew and water repellency.
• Powder coat painted international orange.
• Marine Treated Option available for increased useful life in corrosive environments.

Wind Cone Marine Treated Option

Marine Treated Option

Recommended for high salt and other corrosive environments. Includes: marine treated powder coat, stainless steel hardware throughout.

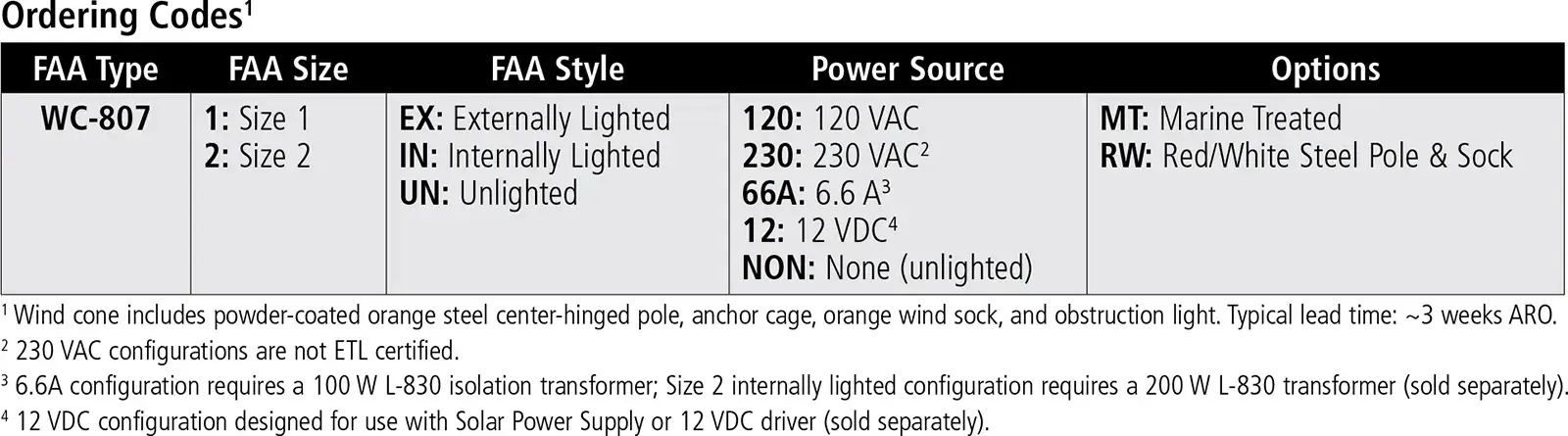

Ordering Code

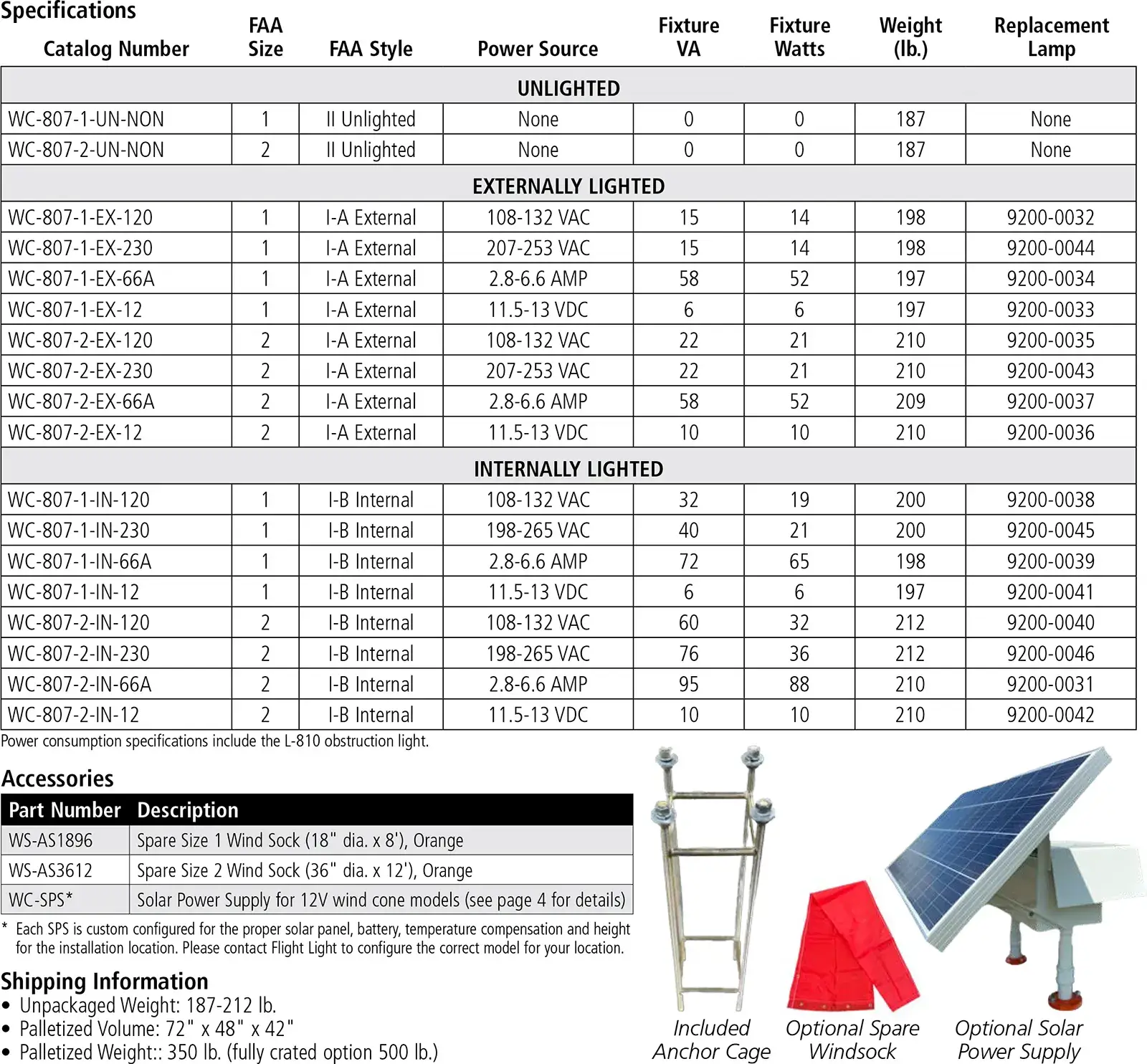

Catalog Number    See Notes FAA Size FAA Style Power Lamp Type Total VA Total Watts Weight (lb.) Lamp
UNLIGHTED
WCH-807-1-0-0-N 1 II Unlighted None None 0 0 187 None
WCH-807-2-0-0-N 2 II Unlighted None None 0 0 199 None
EXTERNALLY LIGHTED
WCH-807-1-EX-120-5 1 I-A External 108-132 VAC LED 15 14 198 9200-0032
WCH-807-1-EX-230-5 2 1 I-A External 207-253 VAC LED 15 14 198 9200-0044
WCH-807-1-EX-66-5 4 1 I-A External 2.8-6.6 AMP LED 58 52 197 9200-0034
WCH-807-1-EX-12-5 1 I-A External 11.5-13 VDC LED 6 6 197 9200-0033
WCH-807-2-EX-120-5 2 I-A External 108-132 VAC LED 22 21 210 9200-0035
WCH-807-2-EX-230-5 2 2 I-A External 207-253 VAC LED 22 21 210 9200-0043
WCH-807-2-EX-66-5 4 2 I-A External 2.8-6.6 AMP LED 58 52 209 9200-0037
WCH-807-2-EX-12-5 2 I-A External 11.5-13 VDC LED 10 10 210 9200-0036
INTERNALLY LIGHTED
WCH-807-1-IN-120-5 1 I-B Internal 108-132 VAC LED 32 19 200 9200-0038
WCH-807-1-IN-230-5 2 1 I-B Internal 198-265 VAC LED 40 21 200 9200-0045
WCH-807-1-IN-66-5 4 1 I-B Internal 2.8-6.6 AMP LED 72 65 198 9200-0039
WCH-807-1-IN-12-5 2 1 I-B Internal 11.5-13 VDC LED 6 6 197 9200-0041
WCH-807-1-IN-120-N 2 1 I-B Internal 108-132 VAC Halogen 316 316 198 3400-0100
WCH-807-2-IN-120-5 2 I-B Internal 108-132 VAC LED 60 32 212 9200-0040
WCH-807-2-IN-230-5 2 2 I-B Internal 198-265 VAC LED 76 36 212 9200-0046
WCH-807-2-IN-66-3 3 2 I-B Internal 2.8-6.6 AMP LED 95 88 210 9200-0031
WCH-807-2-IN-12-5 2 2 I-B Internal 11.5-13 VDC LED 10 10 210 9200-0042
WCH-807-2-IN-120-N 2 2 I-B Internal 108-132 VAC Halogen 516 516 210 3400-0100
Notes:
1. Power consumption specifications include the L-810 obstruction light.
2. This FAA Style cannot be ETL certified.
3. Requires 200 watt L-830 transformer, sold separately.
4. Requires 100 watt L-830 transformer, sold separately.
5. Standard sock color is Orange. Add “-RW” for Red/White sock.
6. Ships approximately 3 weeks after receipt of order.

Options & Spare Components

Part Number Description
L807 Marine Treated “Marine Treated” (recommended for corrosive environments, typically within 100 miles of saltwater). Includes: marine treated powder coat, stainless steel hardware throughout.
WS-AS1896 Spare Wind Sock (18″ dia. x 8 ft)
WS-AS3612 Spare Wind Sock (36″ dia. x 12 ft)
LA-22483-2 Lamp, 120V Incandescent Obstruction Light

WCH Series Wind Cone Solar Power Supply

WCH Series Wind Cone Solar Power Supply

Applications

The Solar Power Supply (SPS) is a self-contained photovoltaic power source for the WCH Series L-806 and L-807 wind cones.

Features

• Eliminates expensive underground trenching and wire installations for wind cones
• Easy installation: pre-set solar angle, pre-assembled anchor for easy mounting
• Fully sunlight powered, zero energy cost operation
• 10 day nominal battery autonomy
• Long life premium AGM solar batteries (5-10 years expectancy)
• 100 to 300 A-H AGM battery, designed for 4000 charge/discharge cycles
• 100 or 200 watt solar panel, with 12-year/90% and 25-year/80% power warranty
• Custom designed for the installation site, using 30-year worst case insolation and temperature extremes
• Insulated battery compartment to preserve battery life
• MPPT charge controller, with custom-programmed temperature compensation
• On-board indicators for battery, charging and system status
• Dual-post mount, with frangible couplings, designed to withstand ASCE Exposure C wind loads
• Temperature range: -49 to +131 °F (-45 to +55 °C)
• Marine treated option available for corrosive environments (upgrades enclosure to aluminum, stainless hardware throughout, marine treated powder coat)
• Manufactured in the USA

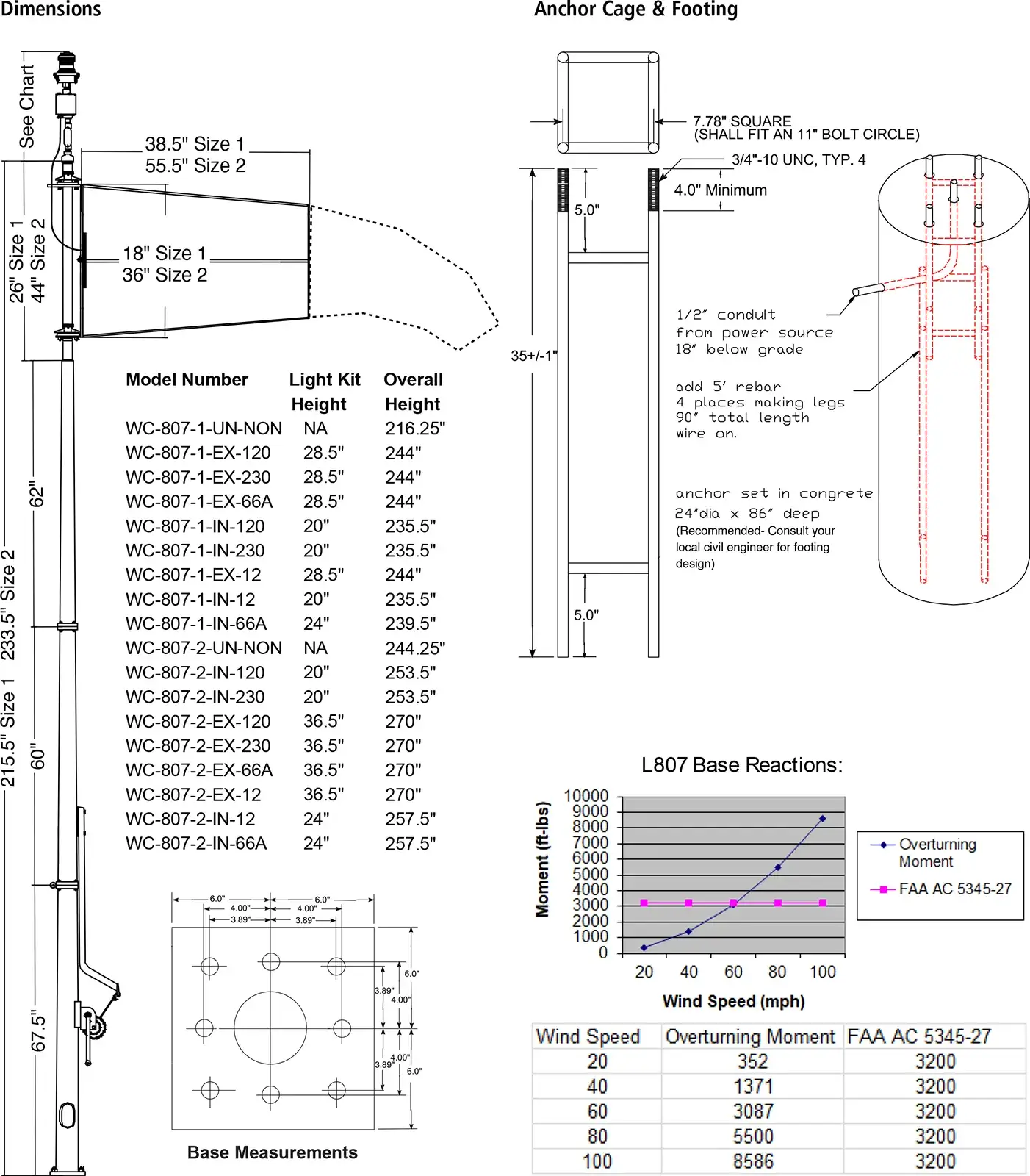

WCH Series Wind Cone Solar Power Supply dimensions

Installation Information

The SPS is attached to a 4-bolt anchor assembly (included), mounted in a concrete slab. Power is supplied to the wind cone by a cable in liquid-tight conduit through one of the SPS mounting legs.

Ordering Information

Product Description
WCH-SPS-100-2-12 100 Watt Panel, 2 Batteries, 12″ Legs
WCH-SPS-100-2-30 100 Watt Panel, 2 Batteries, 30″ Legs
WCH-SPS-200-2-12 200 Watt Panel, 2 Batteries, 12″ Legs
WCH-SPS-200-2-30 200 Watt Panel, 2 Batteries, 30″ Legs
WCH-SPS MARINE Marine treated option for installations within 100 miles of the sea. Aluminum enclosure, marine treated powder coat, stainless steel hardware throughout.
NOTE: Each SPS is custom configured for the proper solar panel, battery, temperature compensation and height for the installation location. Please contact Flight Light to configure the correct model for your location.

Replacement Parts

Part Number Description
WCH-7800-0004 Solar Panel, 100 Watt
WCH-7800-0005 Solar Panel, 200 Watt
WCH-1300-0081 Battery, PVX-840T
WCH-4500-0020 Charge Controller
WCH-7800-0006 Photocell
WCH-1800-0036 Frangible Coupling
WCH-2300-0024 Fuse, 10A 32V

Shipping Information

• Unpackaged Weight: 186-268 lb.
• Shipping Weight: 266-388 lb.
• International Shipping Weight: 466-588 lb.
• Shipping Volume: 60″L x 40″W x 44″H

Can be shipped with wind cone in same crate.
