Q-Helipad Perimeter Light (TLOF)
Certificates
• CE Certificate
• RoHS Certificate
• ICAO Certificate
• TÜV Certificate
Applications

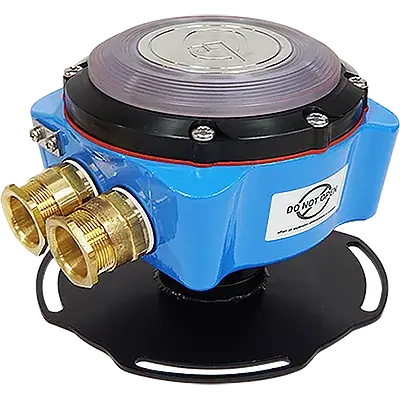

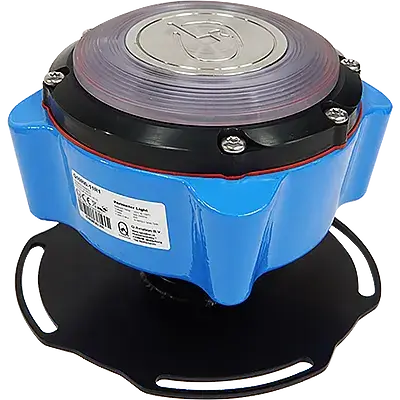

The Q-Helipad Perimeter Light (TLOF) is an ICAO compliant 50 cd perimeter light for all onshore facilities. The Q-Helipad Perimeter Light (TLOF) is available in several configurations such as 100-240 VAC and 24 VDC.

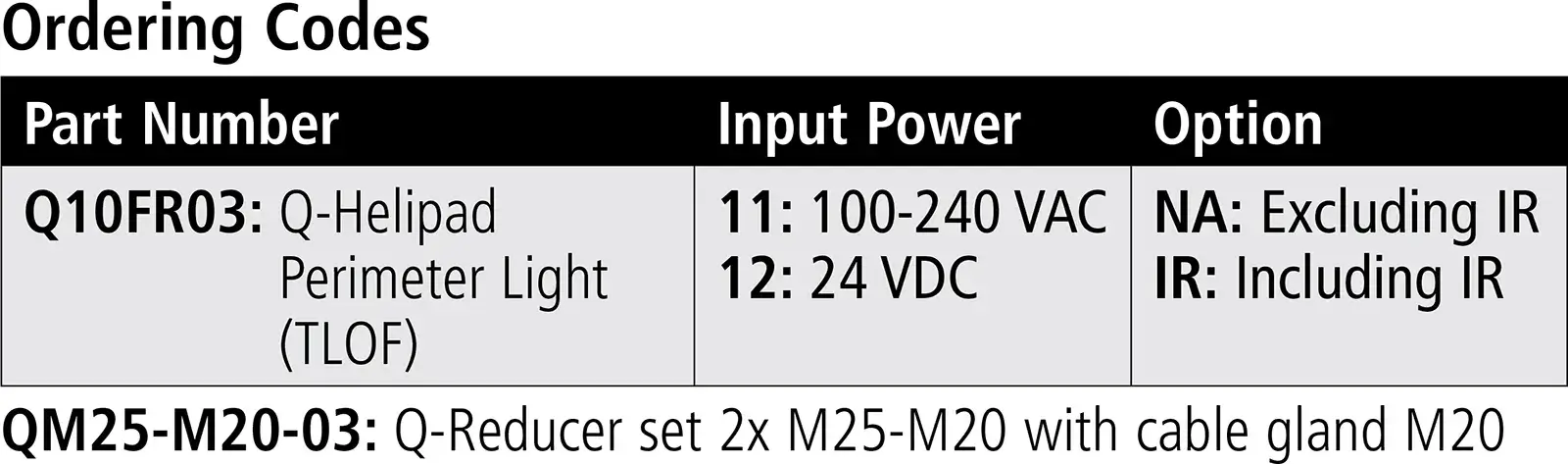

Ordering Codes
| Part Number | Input Power | Option |
|---|---|---|
| Q10FR03 Q-Helipad Perimeter Light (TLOF) | 11: 100-240 VAC 12: 24 VDC |
NA: Excluding IR IR: Including IR |
| QM25-M20-03: Q-Reducer set 2x M25-M20 with cable gland M20 | ||
Technical Specifications
• Application: Helipad
• Classification: Safe Area
• Light Source: LED, steady burning
• Light Color: Green, 530nm
• Light Intensity: 50 cd
• Vertical Beam Profile: as per ICAO
• Color Chromaticity: as per ICAO
• Enclosure: Aluminum, powder coated RAL5015
• Mounting: Frangible, 4x M8
• Input Voltage: 1) 100-240 VAC 50-60 Hz, 2) 24 VDC
• Inrush current: 70A / 120μs
• Maximum number of units: 20 units on a 16A circuit breaker
• External Earthing: up to 4mm2 / AWG 12
• Ambient Temp: -13°F to +140°F (-25°C to +60°C)
• In Compliance With: CAP437
• Cable Glands Included: 2 x M25x1.5
• Cable Outer Dimension: 12 – 19 mm
• Consumption: 8 Watt
• Life Expectancy: 100,000+ hours
• IP Index: IP 66
• Weight: 9.26 lb. (4.2 kg)

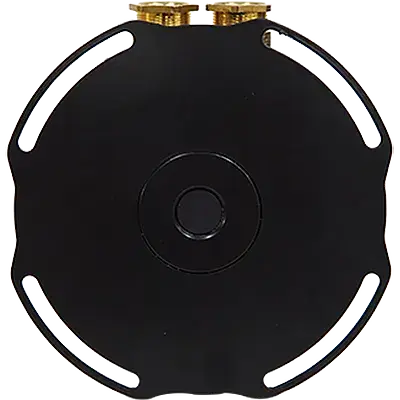

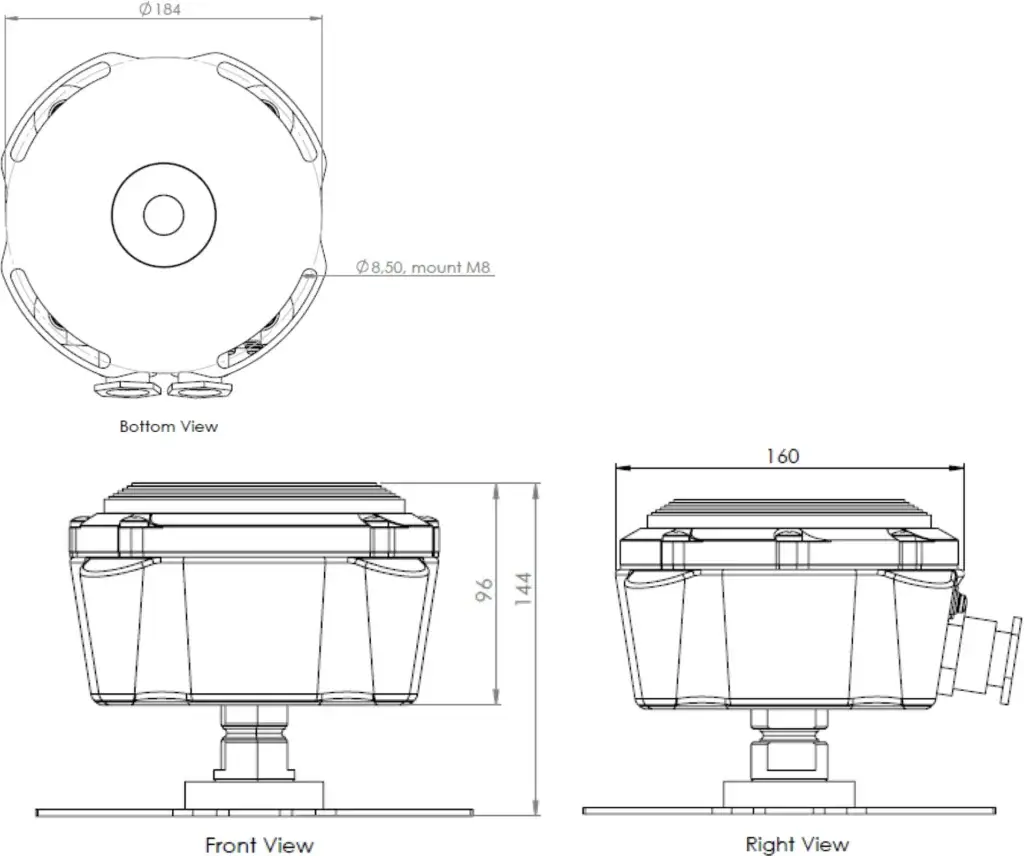

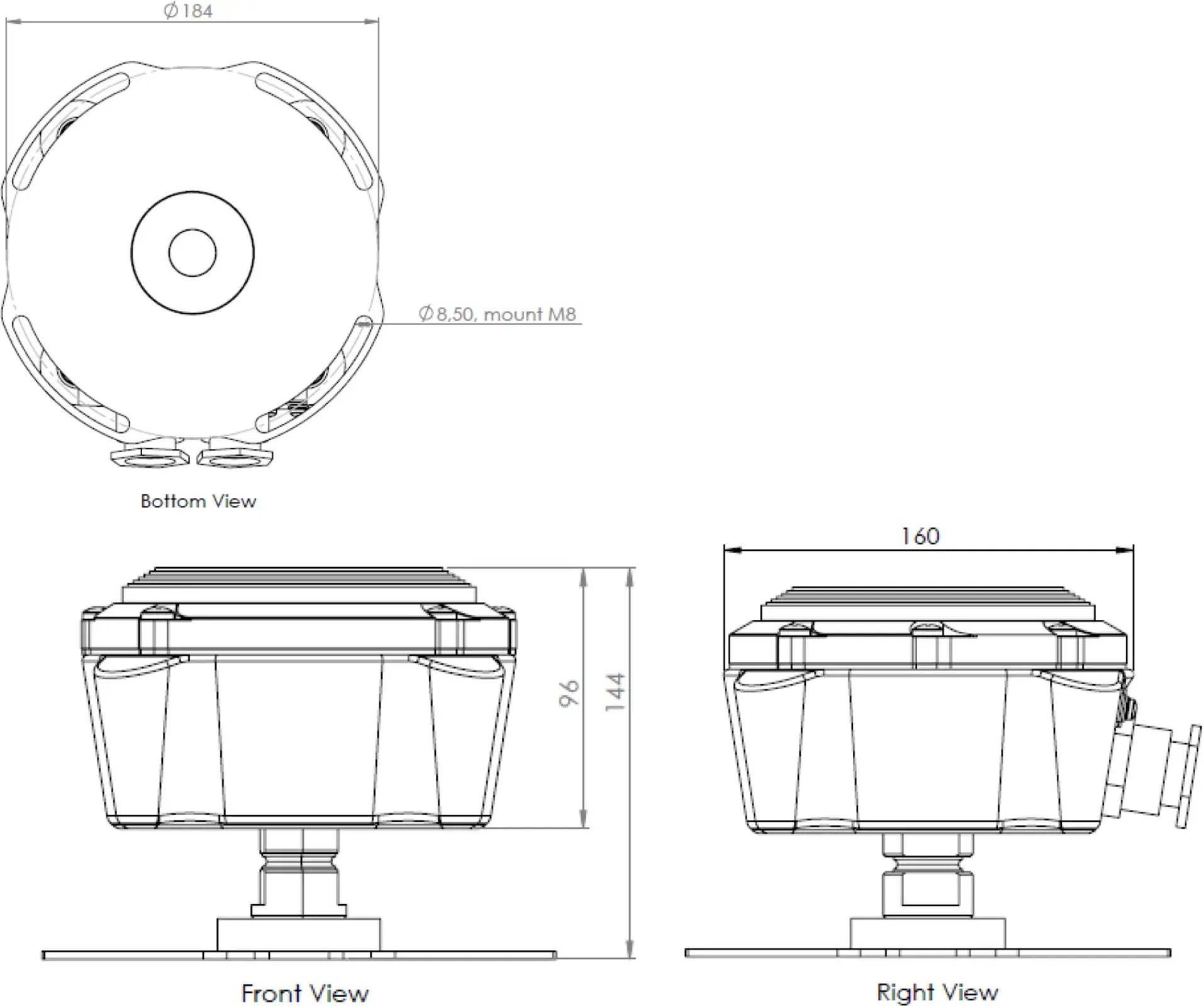

• Dimensions: 7.87″ x 7.87″ x 5.9″ (200x200x150mm) (LxWxH)
• Packaging Dimension: 9.84″ x 9.84″ x 9.84″ (250x250x250mm) (LxWxH)
Optional Solution for Smaller Cable Diameter
• Cable Glands Included: 2 x M20x1.5
• Cable Outer Dimension: 6 – 13 mm
• Accessory code QM25-M20-03
