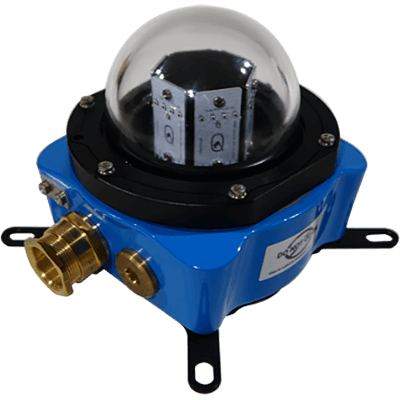

Q-Explosion Proof Status Light Repeater
Certificates
• CAP437 Certificate
• IP67
• CE Certificate
• RoHS Certificate
• Ex Certificate
• IECEx Certificate
Applications
The Q-Explosion Proof Status Light Repeater is a CAP437 compliant (60 cd, 120 FPM) flashing light for all offshore facilities. The Status Light Repeater works as a slave and the Q14RI03 Status Light is required as a master. Both Status lights must be connected to the Status Light Controller.
Ordering Codes
| Part Number |
|---|
| Q14RR01: Q-Explosion Proof Status Light Repeater |
Technical Specifications
• Application: Helideck
• Hazardous Area: Zone 1 and 2
• Classification: Class 1 and 2
• Light Source: LED, flashing
• Light Color: Red, 630nm
• Light Intensity: 60 cd
• Flashes Per Minute: 120 FPM (via controller)
• Vertical Beam Profile: as per CAP437
• Color Chromaticity: as per CAP437
• Enclosure: Aluminum, powder coated
• Mounting: Rigid, 4 x M8
• Input Voltage: From controller
• External Earthing: up to 4mm2
• Ambient Temp: -13°F to +149°F (-25° to +65° C)
• In Compliance With: CAP437
• Cable Glands Included: 1 x M25x1.5
• Cable Stops Included: 2 x M25x1.5
• Cable Outer Dimension: 11 – 20.0mm
• Consumption: 12 Watt
• Life Expectancy: 100,000+ hours
• IP Index: IP 67
• Weight: 6.72 lb. (3.05 kg)
• Dimensions: 7.2″ x 7.2″ x 6.1″ (183x183x155mm) (LxWxH)
• Packaging Dimension: 7.87″ x 7.87″ x 7.87″ (200x200x200mm) (LxWxH)
A) This product must be connected to the Q14RI03 Status Light.
B) This product must be connected to the Q14RI03C Status Light Controller. The controller is sold separately.
C) When a complete helideck package is offered, the Status Light Controller can be built into the Q-Control WMX series.
Certification
Status Light Repeater
Atex Certificate: ITS18ATEX103970X
IECEX Certificate: IECEx ITS 18.0052X
Ex II 2 G Ex db op is IIC T6 Gb
Ex d IIC T6
Cable Gland (2 x included)
Atex Certificate: SIRA13ATEX1068X, SIRA13ATEX4074X
IECEX Certificate: IECEx SIR 13.0023X, IECEx SIM 14.0006
Ex II 2G, II 1D Ex d IIC Gb, Ex e IIC Gb, Ex ta IIIC Da
Ex II 3G Ex nR IIC Gc I M2 Ex d I Mb, Ex e I Mb
Ex d IIC Gb, Ex e IIC Gb, Ex nR IIC Gc, Ex d I Mb, Ex e I Mb
Cable Stop (1 x included)
Atex Certificate: SIRA13ATEX1265X
IECEX Certificate: IECEx SIR 13.0094X, IECEx SIM 15.0002X
Ex II 2G Ex d IIC Gb, Ex e IIC Gb, II 1D Ex ta IIIC Da
Ex IM2 Ex d I Mb, Ex e I Mb
Ex d I Mb, Ex e I Mb; Ex d IIC Gb,Ex e IIC Gb, Ex ta IIIC Da
