HBM 150/3 Heliport Rotating Beacon | L-801H & L-802H
This product is available in our webstore – Shop Now
Compliance and Applications
• FAA: L-801H A/C150/5345-12 (Current Edition), L-802H A/C150/5345-12 (Current Edition)
• ICAO: Annex 14, para 5.3.3
L-801H and L-802H Rotating Beacons are designed primarily for night operation as identification and location markers for heliports.
Features
• Patented belt-drive system eliminates the lubrication maintenance required by conventional gear-drive beacons (U.S. Pat. 5,339,224)
• Patented liquid-filled lamp connector, eliminating the slip rings and brushes found on conventional beacons (U.S. Pat. 5,816,678)
• Three 14,000 lumen, 150 watt metal-halide lamps
• Typical lamp life (1-3 years)
• One clear, one aviation green, and one yellow lens
• Available in Hospital Heliport version (not FAA certifiable)
• No maintenance except lamp replacement
• All moving parts are permanently lubricated
• Impedance-protected motor eliminates burnouts
• Lamps preset 5° above horizontal, adjustable
• 12 RPM rotation, 36 flashes/minute
• Weatherproof steel cabinet, powder coated international orange
• Optional stainless steel cabinet and bearings for highly corrosive environments
• Class I (No Heater) normal operating temperature range: 0°F to +131°F (-18°C to +55°C)
• Class 2 (With Heater) normal operating temperature range: -67°F to +131°F (-55°C to +55°C)
• Tested to wind velocities of 100 mph (160.9 kph)
• Optional photocell and/or tell-tale relay
• Mountable on a tipdown pole
• Military version available
• Power Consumption: 595W Class I, 995W Class II
• Manufactured in the USA

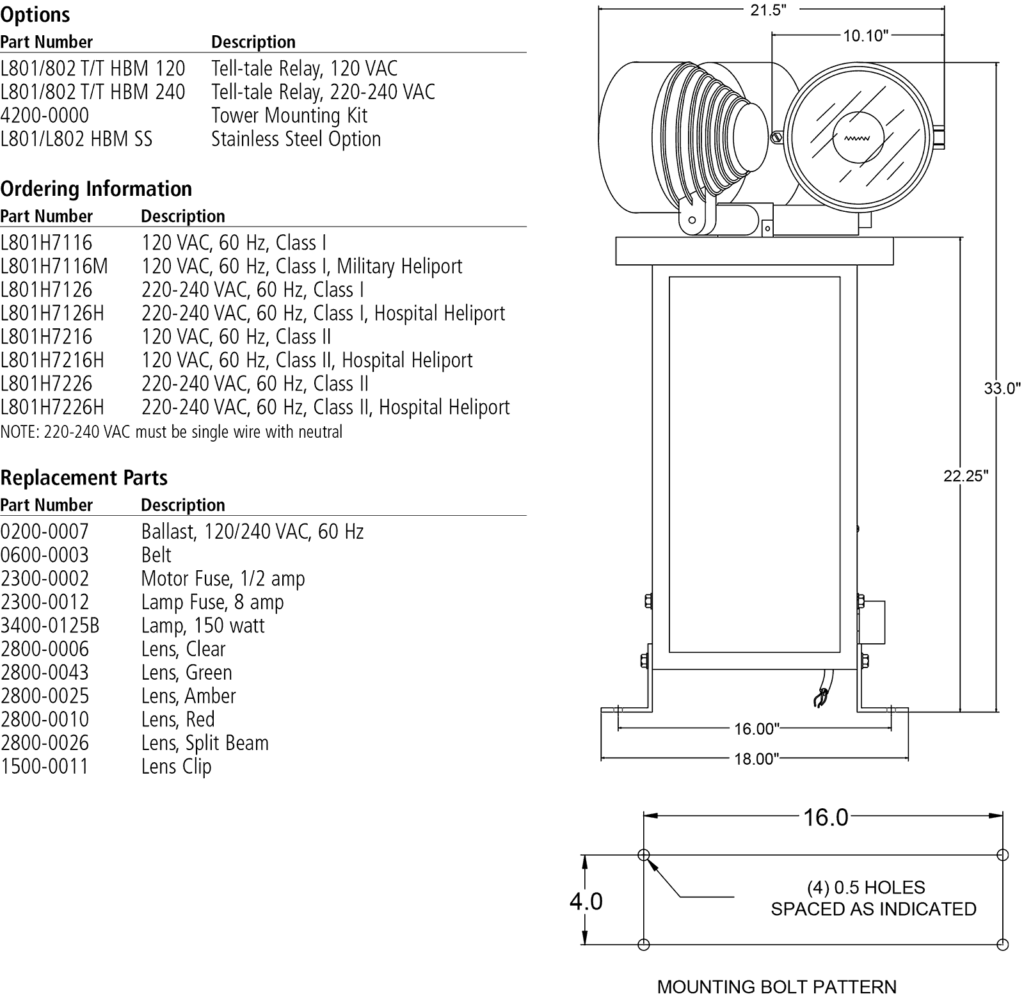

Ordering Information
| Part Number | Description |
|---|---|
| L801H7116 | 120 VAC, 60 Hz, Class I, Heliport |
| L801H7116H | 120 VAC, 60 Hz, Class I, Hospital Heliport |
| L801H7116M | 120 VAC, 60 Hz, Class I, Military Heliport |
| L801H7126* | 220-240 VAC, 60 Hz, Class I, Heliport |
| L801H7126H* | 220-240 VAC, 60 Hz, Class I, Hospital Heliport |
| L801H7216 | 120 VAC, 60 Hz, Class II, Heliport |
| L801H7216H | 120 VAC, 60 Hz, Class II, Hospital Heliport |
| L801H7226* | 220-240 VAC, 60 Hz, Class II, Heliport |
| L801H7226H* | 220-240 VAC, 60 Hz, Class II, Hospital Heliport |
| * 220-240 VAC models are for overseas applications, (220-240 volts LINE TO NEUTRAL) | |
Options
| Part Number | Description |
|---|---|
| L801/802 T/T HBM 120 | Tell-Tale Relay, 120 VAC |
| L801/802 T/T HBM 240 | Tell-Tale Relay, 240 VAC 60Hz |
| L801 HBM SS | For corrosive environment installations, installations within 100 miles of seawater: stainless steel cabinet, bearings, legs and hardware throughout. |
| 4200-0000A | Mounting Kit: Creates a platform from 36″ beacon to all current model beacons |
| 4200-0001A | Tower Mounting Kit, Stainless Steel |
Replacement Parts
| Part Number | Description |
|---|---|
| 0200-0007 | Ballast, 120/240 VAC, 60 Hz |
| 0600-0003 | Belt |
| 2300-0002 | Motor Fuse, 1/2 amp |
| 2300-0012 | Lamp Fuse, 8 amp |
| 3400-0125B | Lamp, 150 watt |
| 2800-0006 | Lens, Clear |
| 2800-0043 | Lens, Green |
| 2800-0025 | Lens, Amber |
| 2800-0010 | Lens, Red |
| 2800-0026 | Lens, Split Beam |
| 1500-0011 | Lens Clip |
Shipping Information
• Unpackaged Weight: 96 lb. (44 kg)
• Shipping Weight: 124 lb. (56 kg)
• Shipping Volume: 48″ x 28″ x 25″ (122 x 71 x 64 cm)
