AV-70 & AV-70-16AH Solar Aviation Light | Avlite

This product is available in our webstore – Shop Now

Made in the USA flag

Compliance

• FAA L861T, Barricade AC 150/5370-2F
• ICAO Annex 14, Volume 1, ‘Aerodrome Design and Operations’

Applications

• ICAO and FAA Compliant.
• Runway threshold/end.
• Runway edge light.
• Taxiway edge light.

Features

• Cost Effective
– Solar powered.
– No running costs.
– Low ongoing maintenance costs.
• Easy Install
– No trenching of cables.
– No mains power.
• Reliable
– No bulbs blown – ever.
– Latest LED technology.
– No moving parts.
• High Performance
– Integrate into an Avlite runway lighting system.
– Dusk-to-dawn or on demand operation.
• Optional Add Ons
– Infrared output.
– Radio control.
– Mounting solutions.

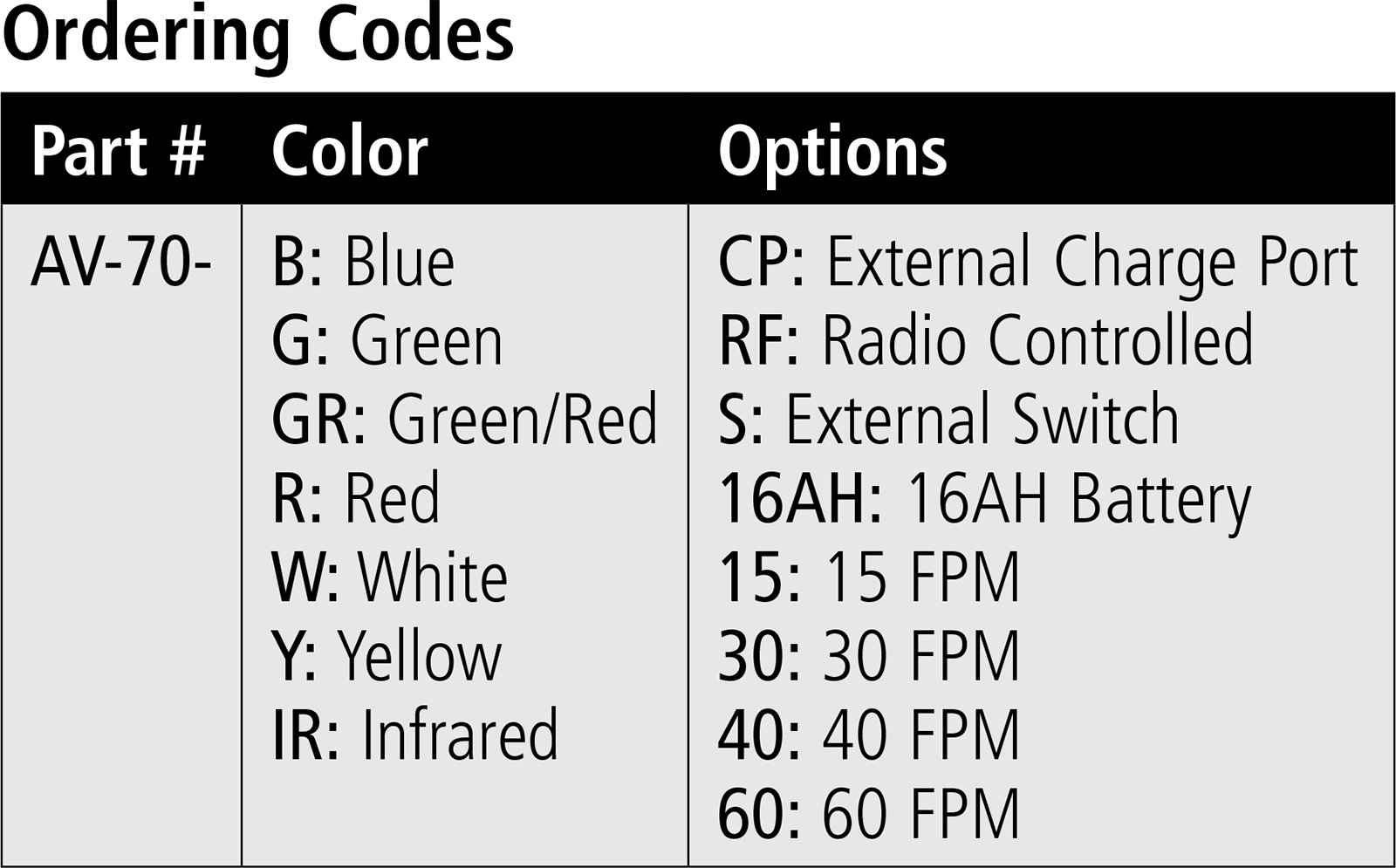

Ordering Codes

Part # Color Options
AV-70- B: Blue
G: Green
GR: Green/Red
R: Red
W: White
Y: Yellow
IR: Infrared[1]
CP: External Charge Port
RF: Radio Controlled
S: External Switch
16AH: 16AH Battery
15: 15 FPM
30: 30 FPM
45: 45 FPM
60: 60 FPM
[1] Requires “Radio Controlled” option. Infrared LEDs cannot be operated simultaneously with visible LEDs.

The solar powered AV-70 is a field-proven aviation light that offers enormous benefits over traditional battery and hard-wired aviation lights, including low maintenance and no underground wiring.

These completely self-contained LED lights are designed to suit a range of aviation and general applications, including emergency airstrip, caution, taxiway, and threshold lighting.

The unit has two high-performance solar modules mounted within the lens, that maximize solar collection and provide reliable operation in a range of environmental conditions.

The focal plane of the light is designed to provide a vertical divergence of between 0 to +7°, and the user-replaceable battery ensures a service life of up to 12 years.

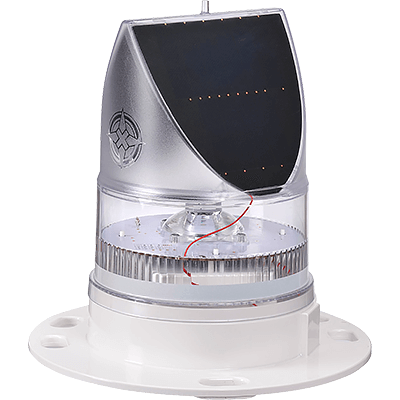

AV-70

The AV-70 is made from tough, durable UV stabilized LEXAN® polycarbonate, and incorporates an internal photodiode for automatic night activation once the ambient light threshold drops sufficiently.

Completely self-contained and able to be installed in minutes, the AV-70 is the preferred choice for marking of remote airfields.

AV-70-16AH

The AV-70-16AH is a high intensity version of the AV-70 and is ideal for use in high sunlight areas.

Optional Radio Control

The AV-70-RF is a radio-controlled version of the AV-70, which can be used in conjunction with a PALC or simple handheld controller. Users can wirelessly control ON/OFF functions, adjust light intensities or switch between visual and IR (tactical) operational modes if fitted.
