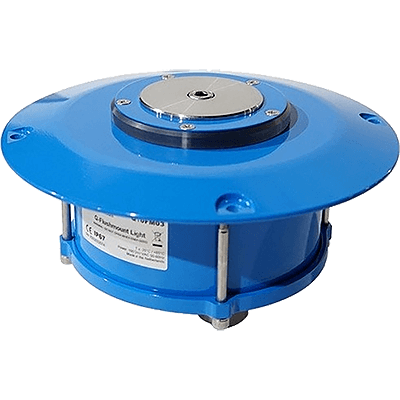

Q-Flushmount Perimeter Light

Compliance and Applications

FAA, ICAO, CAP437

The Q-Flushmount Perimeter Light is used to mark the perimeter of the landing area for helipads or helidecks. Available in several configurations such as 230 Vac and 12-24 Vdc and as a complete set with system controller that can adjust the intensities according to your specifications.

Ordering Codes

Product NameMountingZoneColorInput PowerOperationCandela
Q10: Q-Perimeter LightFM: Flushmount03: Safe AreaGR: Green11: 100-240 Vac
12: 12-24 Vdc
16: Steady Burning
17: Steady Burning with IR LED
205: 50 cd

Technical Specifications

• Product Code: Q10FM03
• Application: Helipad or Helideck
• Light Color: Green, IR Optional
• Light Source: LED
• Light Output: 50 cd
• LED: 5 Watt
• Input voltage: 100-240 Vac or 12-24 Vdc
• IP-Index: IP68
• Ambient Temp: -13° to +131° F (-25° to +55° C)
• Enclosure: Aluminium, powder coated
• Cable Gland: 1x M20; Cable O.D.: 7-13mm
• Consumption: 5 Watt/peak

Operation

The Q-Flushmount Perimeter Light, spaced at intervals of not more than 9.84' (3 m), should be fitted around the perimeter of the landing area of the helideck or helipad/port. For any application, the Q-Flushmount Perimeter Light will not exceed a height of .98" (25 mm) above the surface.

Onshore Usage

The Q-Flushmount Perimeter Light is made for flush mount facilities. When the Q-Flushmount Perimeter Light is used on the surface, a base will be needed to mount the light correctly.
