HL-490L Stainless Steel 6″ Helideck/Helipad Semi-Flush Perimeter Inset Light
Downloads
This product is available in our webstore – Shop Now
Compliances
• FAA AC 150/5390-2D Heliport Design Guide
• Exceeds FAA AC 150/5390-2D Appendix G Specifications
• ICAO Annex 14, Volume II for TLOF
• UL 1598 Standard: IFAO.E346137 (U.S.), IFAO7.E346137 (Canada) (only “ACUL” lamp is UL listed)
• Transport Canada TP14371, AGA 7.16
• IP67 Compliant
• Buy American Act Compliant
Applications
Semi-flush stainless steel perimeter light helps mark helipad touchdown and lift-off area (TLOF) and/or final approach and takeoff area (FATO) for metal helidecks and pavement heliports.
Why Our HL-490L is Better
• Stainless steel construction better resists salt, chemicals, and weather exposure.
• Nitric acid passivated to maximize the essential corrosion resistance.
• Small 6″ [15.24 cm] fixture easily drops into metal helideck, fastens with 4 bolts.
• Recessed, semi-flush mounted, allows for obstruction-free movement of equipment and personnel.
• Fixture sealed to bottom cover to prevent moisture intrusion.
• Prism removal and replacement achieved without need for adhesives or sealants.
• Pre-focused optics simplify maintenance.
• Cost-saving, energy-efficient LEDs.
• Power adapter included.
• Low maintenance – LED light source has 50,000 hour lifetime (50X longer than halogen).
• Monochromatic output of LEDs is more conspicuous than halogen.
• Available in 10-30VDC, 120-240VAC or 277VAC versions.
• With our Dimming Controller option, the lights can be dimmed at night to reduce glare – select from three brightness levels.
• Available for non-heliport applications such as architectural lighting.
Ordering Codes
| Fixture | LED Color | Power/Compliance | |
|---|---|---|---|
| HL-490L | G: Green (std)[1] B: Blue R: Red W: White Y: Yellow IR: Infrared[2] |
AC: 120-240VAC[4] AC3: 277VAC[4] ACUL: 120-240VAC[3] DC: 10-30VDC[4] DCD: 10-30VDC Dimming[4] |
|
| [1] Green is currently the recommended color for heliport perimeter lights. [2] Infrared must be used in conjunction with visible LEDs. Infrared does not dim with the “DCD” dimming option. [3] Only “ACUL” lamp option can be UL listed. Connector not included. UL labeled fixtures only available for shipment to U.S. and Canada. [4] Lamp option is not UL listed. |
|||
Specifications
• Construction: 304 stainless steel passivated with nitric acid.
• 316 stainless steel hardware.
• Low profile: .86″ [2.18 cm] (base can mounted), 1.11″ [2.82 cm] (helideck mounted).
• Diameter: 6″ [15.24 cm]
• Bolt circle: 5.25″ [13.34 cm]
• Power consumption: AC input = 7.2VA; DC input = 4W; IR AC input = 10.8VA; IR DC input = 7.2W
• Light channel within .2″ (.51 cm) of grade.
• Fixture grounding: internal.
• Includes 48″ [122 cm] of UL SO Cable 16AWG (UL Version).
• Weight: 7.5 lb. (3.4 kg). Carton size: .3 cu. ft. (.008 cu. meters); 8″ (d) x 8″ (w) x 8″ (h) (20.3 cm (w) x 20.3 cm (d) x 20.3 cm (h))
• Temperature range: -4°F/+131°F (-20°C/+55°C).
Visible/Infrared LED Option
• Night Vision Goggle (NVG) compatible.
• Infrared Output:
– Exceeds SAE Aerospace recommendations for Landing/Taxi Lights.
– Usable beam width: 55° to 125° vertical, 360° horizontal.
– Output wavelength: 850nm.
– Infrared does not dim with the “DCD” dimming option.
• Visible Output:
– Exceeds ICAO TLOF requirements for green LEDs (see photometric chart).
– Usable beam width: 30° vertical, 360° horizontal.
– Output wavelength: 530nm.
How to Specify the HL-490L LED Helideck Semi-Flush Perimeter Light
The fixture shall be model HL-490L-(LED color)-(voltage) as marked by Flight Light Inc.
Construction:
• The fixture shall be 6″ [15.24 cm] diameter, 5.25″ [13.34 cm] bolt circle.
• The fixture shall be omnidirectional.
• The fixture shall be 304 stainless steel with nitric acid passivation.

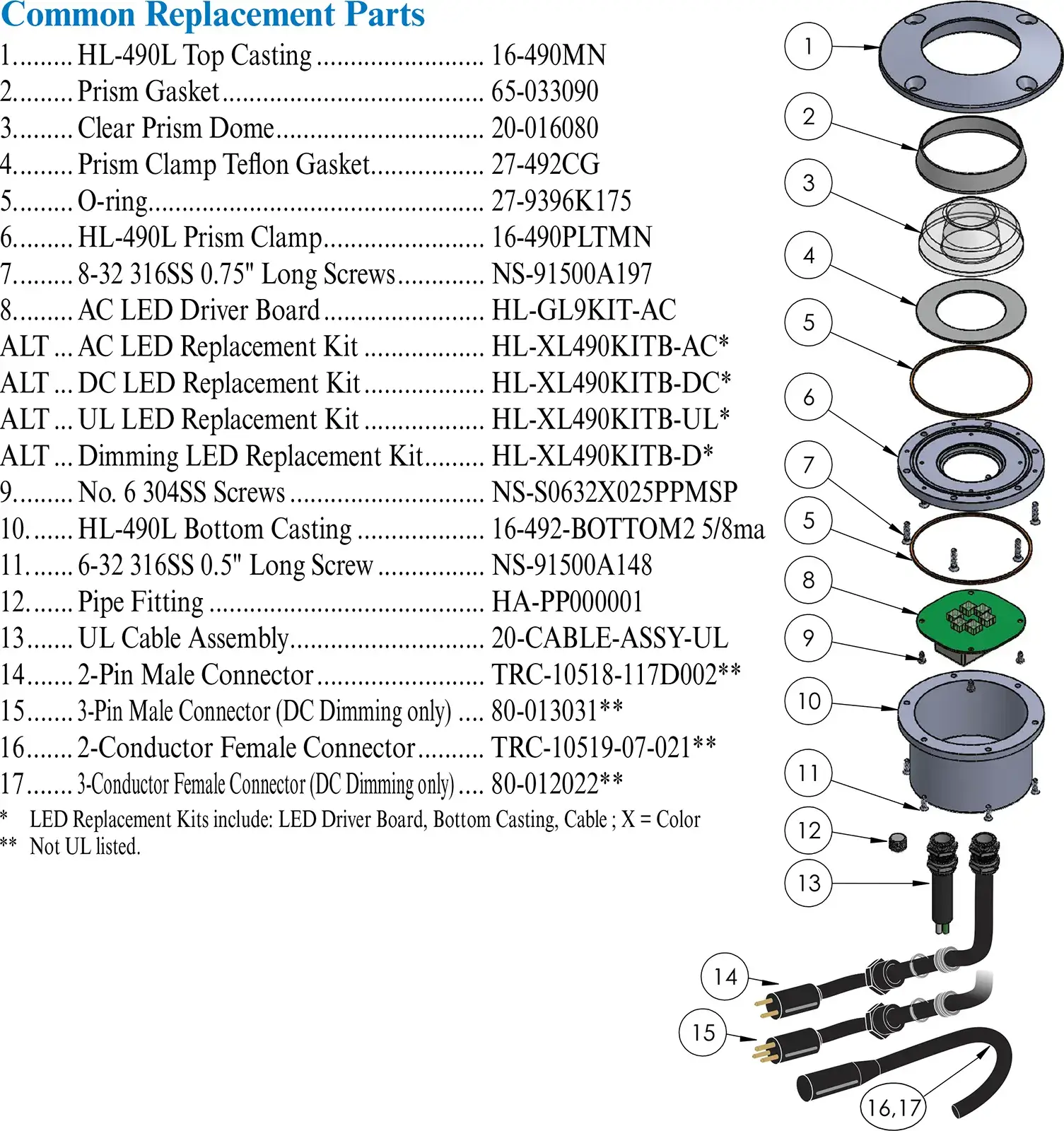

• The fixture shall have a modular design comprised of 2 major parts: Bottom Casting and Top Casting. The Bottom and Top Casting are sealed by means of a Prism Clamp and O-ring.
• Hardware shall be 316 stainless steel.
• Fixture shall ground internally.
• The fixture shall include 48″ [122 cm] of UL SO Cable 16AWG (UL Version).
LED/Light Cavity:
• LED lifetime expectancy: 50,000 hours.
• Power consumption shall not exceed 7.2VA for AC lights, 4W for DC lights, 10.8VA for IR AC lights and 7.2W for IR DC lights.
• Infrared output wavelength: 850nm
• Infrared output usable beam width: 55° to 125° vertical, 360° horizontal
• Visible output wavelength: 530nm
• Visible output beam width: 30° vertical, 360° horizontal
Compliances:
• IP67 Compliant
• Buy American Act Compliant
• FAA AC 150/5390-2D Heliport Design Guide
• ICAO Annex 14, Volume II for TLOF
• Optical performance exceeds FAA AC 150/5390-2D Appendix G Specifications
• Transport Canada TP14371, AGA 7.16
Options (to be specified per each project):
• Infrared (must be used in conjunction with visible LEDs)
• Dimming (only available with the Flight Light controller)
• UL Listed fixture
• 6″ [15.24 cm] Deep Base Can for ground installation.
