AV-OL-60 Red Solar Aviation Light | Avlite

This product is available in our webstore – Shop Now

Compliance

• FAA AC150/5370-2F for construction and barricade installations
• ICAO Annex 14 Volume 1, ‘Aerodrome Design and Operations’, paragraph 5.3.17.7.

Applications

• Solar Barricade Light
• Solar Caution Light
• Solar Hazard Light
• Solar Taxiway Light (ICAO)
• Solar Obstruction Light

Features

• Solar powered, self-contained
• Easy installation
• Integrated solar/battery system
• Internal high-performance solar module to maximize solar collection
• IP68 waterproof rating
• Internal user-replaceable battery in sealed compartment
• Ultra-high intensity LEDs (no changing lamps ever)
• Molded from UV-stabilized LEXAN® polycarbonate
• Automatic night activation

Ordering Codes

Part Number Options
SL-OL-60R S: External Switch
16AH: 16AH Battery
15: 15 FPM
30: 30 FPM
40: 40 FPM
60: 60 FPM

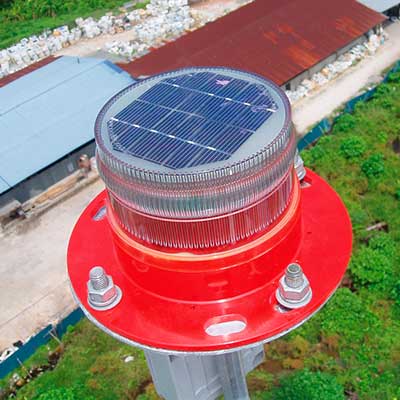

The AV-OL-60 is a field proven, low maintenance, self-contained solar LED light that is suitable for a variety of applications including general hazard, caution, barricade and low-intensity obstruction lighting.

Manufactured using latest in LED technology, the popular AV-OL-60 model boasts user-adjustable intensity and flash code settings that can be easily modified on site as required. Once activated, the light is ready for immediate operation and requires no operator intervention after installation.

Utilizing the high performance built-in solar module to the charge the battery during daylight hours and the internal photo diode to detect ambient light, the AV-OL-60 achieves true self-sufficient dusk-till-dawn operation in a small form factor environmentally sealed package that can be installed in minutes.

The versatile nature of the AV-OL-60 means it is also suitable for a range of taxiway applications.

Optional ON/OFF Switch & External Charging Port

This model can also be fitted with an optional, external ON/OFF switch for manual operation and/or an optional charging port for charging the battery while stored for extended periods.

Optional Larger Battery Pack

For regions where additional autonomy is required, this unit can also be supplied with a larger 16Ah battery pack.
